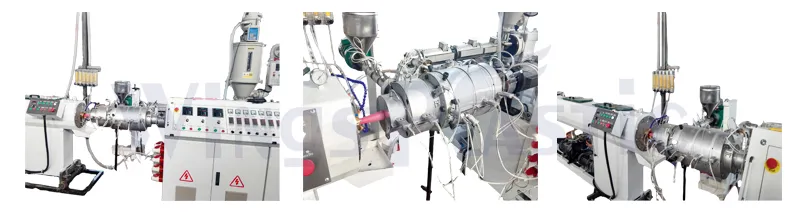

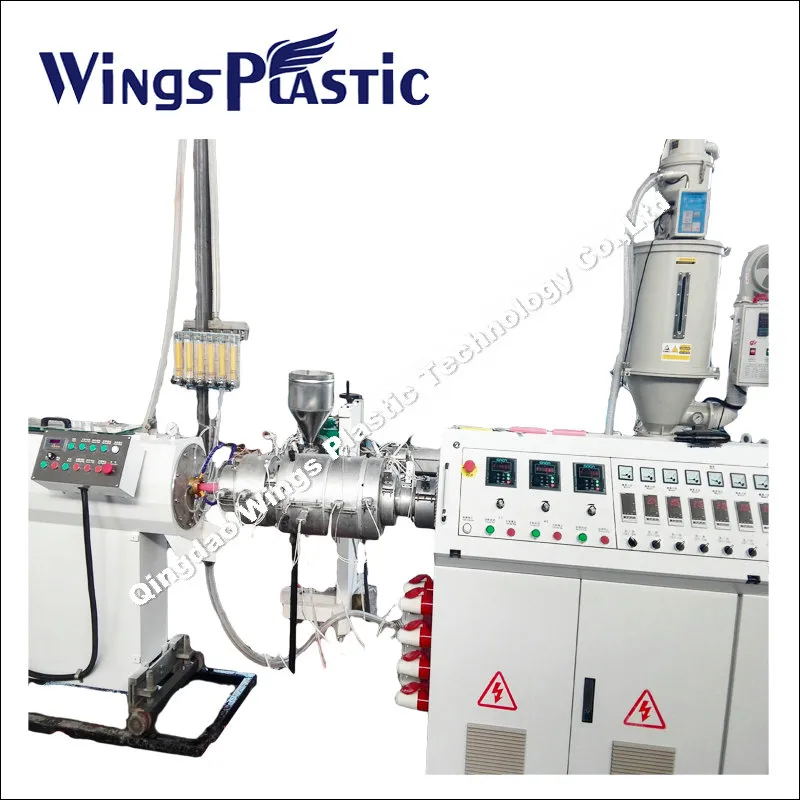

16-63mm PPR PP PE Pipe Extrusion Line / Plastic PPR Pipe Extruder Machine
16-63mm PPR PP PE Pipe Extrusion Line
PPR Pipe Extruder nowadays used in many fields, such as single layer pipe,multi-layer composite pipe, agriculture irrigation pipe and cable protection pipe.
|1||Automatic feeding machine||1 set|
|2||Hopper dryer||1 set|
|3||Single screw extruder||1 set|
|Calibration sleeve||1set 16-63|
|5||Co-extruder(for color lines)||1set|
|6||Vacuum Calibration Tank 6meters, made of Stainless steel||1 set|
|7||Cooling tank 6meters, made of stainless steels||1 set|
|8||Two-claw Hauling machine||1 set|
|Plsl contact with us for detailed Model|
PPR Pipe Extruder has its own structures; the key points are as follows:
The main extruder adopts PPR high-efficiency screw, notched feeding cylinder and is equipped with strong water jacket cooler, which greatly improves its transmission capacity and guarantees high-efficiency extrusion.
The basket composite machine head adapted for PE processing not only guarantees extrusion stability at high speed, but also realizes minimum stress and highest pipe quality in low temperature.The high-efficiency double-cavity vacuum sizing technology and spray cooling tank improves the rate of finished product and meets the need of high-speed production.
Adopt multi-caterpillar to drive all pedrails through central motor to get synchronous height and guarantees pipe's roundness.
The high-speed, precise designed cutting machine is low in noise. And it is also equipped with strong scrap attracting device to reduce the work of maintenance to the lowest degree.
|Specifications of extruder||SJ65/30||SJ90/30|
|Pipe Type(mm)||φ16- φ 63||φ 75- φ 110|
|Production line speed(m/min)||≥ 10||≥ 5|
|Air pressure(≥ 0.6MPa)(m3/min)||0.3||0.5|
|Cooling water flow rate(m3/h)||2||8|
