1.The main accessories of the welding machine are made by fully automatic aluminum casting. It is lighter, more solid and smooth than the machine made by sand-casting and steel-form technology.
2.Using static plastic-spraying process, colorful,smooth surface and not easy to be damaged.
3.The main accessories of the hydraulic station are imported overseas, which could reduces the maintence and extends the life of hydraulic station.
4.The package we use is fumigated cartons which has nice appearance and solid structure for convenient.

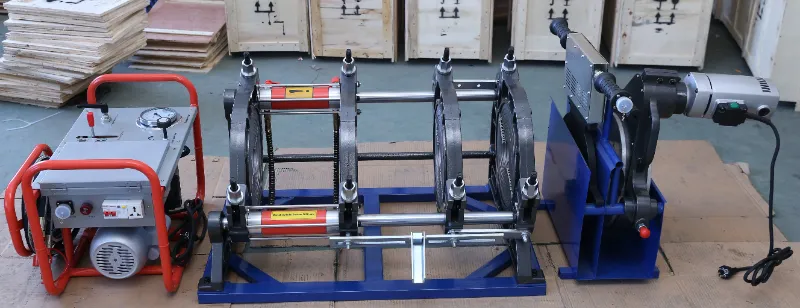

90-355mm HDPE Butt Fusion Machine/PE Pipe Welding Machine/Thermofusion Welding Machine/HDPE Butt Welder
Brief: Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
Be made of Aluminum material.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature: 1. Removable PTFE coated heating plate with separate temperature control system.
2. Electric Planning Tool with reversible double cutting edge blades.
3. Hydraulic Unit provides welding machine with compressing power.
4. Be made of Aluminum material.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the exact time and temperature.
|Welding Range (mm)||90 110 125 140 160 180 200 225 250 280 315 355|
|Heating Plate Max.Temp.||270°C|
|Temp. Deviation in Surface||≤±5°C|
|Working Voltage||220V 50HZ|
|Heating Plate Power||3.6KW|
|Planning Tool Power||1.1KW|
|Hydraulic Unit Power||0.75KW|
|Pressure Adjustable Ranges||0-6.3Mpa|
|Packing||Wooden Box||2 Wooden Boxes|
1. The guarantee period is 14 months after testing successfully in customer's factory, but not exceeds fourteen months after delivery.
2. 24 hours technicila service by e-mail or by my call.
3. We will arrange the technician to training in foreign countries.
1.why choose our factory ?
Our company has advanced production equipment and strong technology. The producing process is under strict management in quality. Our products are sold around the world and highly thought of since excellent quality and perfect service at home and abroad
2.The advantage for product?
High efficiency , energy saving and good quality.
3.The advantage for us ?
Reasonable price and best services , advanced equipment and strong technology.
4.How to order?
Do not hesitate to contact by online or Email as soon as possible once you are interested in our products. The specific quotation will be offered basing the request dimension and quantity
5. What about the quality?
All products according to ISO and National highest standard, also we can offer CE, certificate if necessary. The machine have one year warranty.
6. What payment is available?
L/C at sight, or T/T 100% shipment.
